Why a framework matters for the integration engineer
When you’re tasked with turning a yard of chargers into a dependable, high-throughput hub, ad-hoc fixes won’t do — you need a repeatable framework. This piece lays out a pragmatic architecture so designers and operators can spec power, control and storage with clarity. Early on, consider how a three phase hybrid inverter will sit in your power chain: is it the grid-facing gateway, the local microgrid controller, or both? The framework keeps those decisions coherent across site assessments, procurement and commissioning.
Core framework modules
The approach breaks into five repeatable modules. Each module maps to deliverables you can hand to procurement or a contractor:
– Site & load assessment: measured demand profiles, diversity factors, and future-growth scenarios. – Power architecture: single-line diagrams, transformer and switchgear sizing, and phase balancing details. – Energy storage & inverter selection: battery sizing, inverter topology (grid-forming vs grid-following), and peak shaving strategy. – Control & software: EMS logic, SoC management, and communications (Modbus, OCPP, REST APIs). – Testing, commissioning & lifecycle: FAT, SAT, acceptance criteria and maintenance schedules.
These modules keep conversations technical and contractual, and they make risk visible before the drill hits concrete.
Sizing batteries and choosing inverters

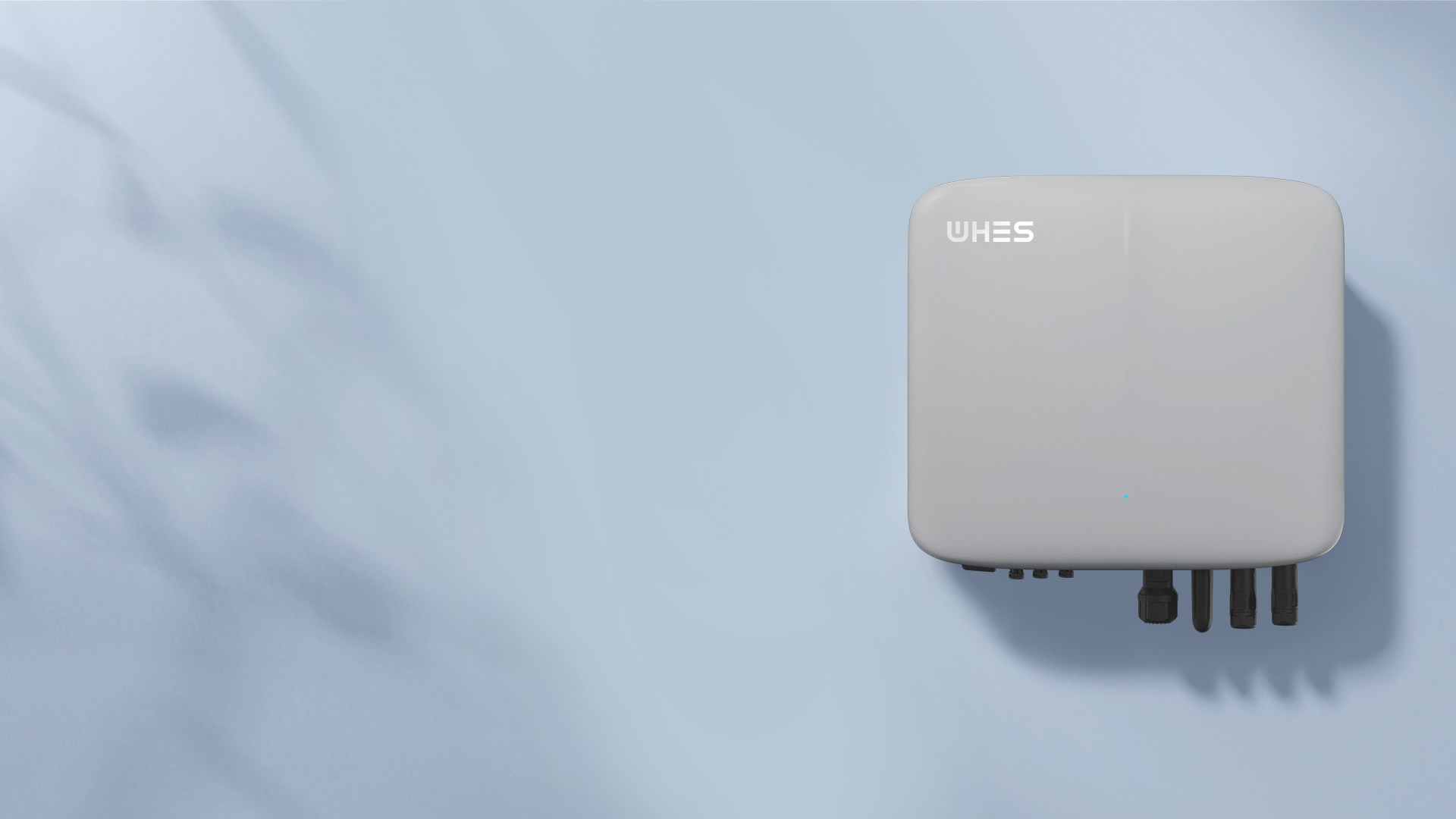

Start with measured charge-session cadence: number of 22–150 kW sessions per hour, dwell times and the depot’s acceptable grid import. For small to light-commercial solar-plus-storage at individual charger clusters, a 5kw three phase solar inverter can be a sensible building block — modular, simple to parallel, and well-matched to local PV arrays. Decide early whether you’ll use DC-coupled storage for higher efficiency or AC-coupled for easier retrofit work.
Keep these sizing rules in mind: battery capacity in kWh should cover your peak-shortfall window (often 15–60 minutes for buffering), inverter continuous power must handle charger diversity, and state of charge (SoC) policies should prioritise availability during peak operational hours. The IEA’s observations on rapid EV uptake underline the point — demand growth is real and persistent, so design with headroom rather than just “today’s” numbers.
Control patterns and software architecture
For fleet hubs, control is everything: local EMS must orchestrate charging, PV, storage and grid signals without fuss. Typical control patterns include peak shaving, load shifting, and dynamic setpoint allocation per charger. Use a layered control model — fast local loops (power electronics, inverter controls), supervisory EMS (scheduling, SoC targets), and cloud analytics (fleet telemetry, predictive maintenance).
Integrations to consider: vehicle telematics for arrival/departure predictions, utility demand-response signals, and tariff-aware scheduling. Avoid monolithic systems — pick modular APIs so you can swap an EMS or a charger vendor without redoing your protection coordination. And mind firmware maturity; a stable inverter that supports bidirectional control makes V2G or advanced grid services feasible down the road — but don’t bet the business model on features that aren’t proven.
Protection, standards and safety considerations
Nothing is more likely to stall a project than mismatched protection settings or misunderstood standards. Confirm anti-islanding behaviour, coordinate relay settings with local distribution operators, and follow national wiring regs and CE/IEC standards where applicable. If you’re paralleling inverters, validate synchronization, power factor control and short-circuit capabilities in the design phase to avoid nasty surprises during commissioning.
Common mistakes — and how to dodge them
Engineers make the same handful of errors. Watch for these:
– Underestimating transient loads: DC fast-charging can create brief but heavy power swings; your inverter peak rating must accommodate them. – Overlooking communication failure modes: define safe defaults if the EMS or cloud goes dark. – Neglecting lifecycle cost: cheap inverters today can cost more in downtime and replacement tomorrow. —
Operational KPIs and testing checklist
Define measurable KPIs from day one: charger availability (% uptime), round-trip efficiency for storage, mean time to repair (MTTR), and accuracy of state-of-charge forecasts. FAT and SAT should include: real sessions with representative EV loads, simulated grid-events, and long-duration soak tests for thermal stability. Documentation matters — acceptance is much easier with test scripts that map to contractual KPIs.
Procurement patterns and vendor selection
When you evaluate suppliers, score them against three vectors: technical fit (does the inverter support required controls and efficiency), serviceability (remote diagnostics, spare-part lead times), and track record (past depot or microgrid projects). Small, modular inverters like 5 kW three-phase units are excellent when you want graceful degradation and easy spare swaps; larger centralized inverters might reduce parts count but raise single-point-of-failure risk.
Advisory — three golden rules for choosing strategies and tools
1) Design for availability first: size storage and redundancy so operational uptime — not lowest capex — guides the architecture. 2) Insist on open, modular controls: favour inverters and EMS that use standard interfaces and documented APIs to avoid vendor lock-in. 3) Use real-world trials: pilot a cluster under live traffic for at least one month before full roll-out to validate SoC strategies and thermal behaviour.
These rules steer you to solutions that perform, not just promise. For many projects, that practical reliability is exactly why teams partner with seasoned suppliers like WHES — their product breadth and integration know-how often make the difference between a hub that’s “almost” ready and one that’s operational on day one.
– quiet confidence, practical tools.
